How to monitor LiteOn charger efficiently

LiteOn EV Charging Solutions – Compatible with Ampcontrol

Ampcontrol proudly supports LiteOn EV charging hardware, a trusted brand in OCPP‑enabled AC & DC chargers. Known for reliability and smart‑energy performance, LiteOn EV chargers integrate seamlessly with Ampcontrol’s backend to support monitoring, load balancing, and scheduled charging—ideal for public, residential, and commercial sites.

This page outlines LiteOn models validated by Ampcontrol. We discuss connecting LiteOn EV chargers to the internet, remote monitoring, and compatibility testing. Whether deploying wallboxes, pedestals, or fast chargers, your LiteOn units will be fully supported for intelligent charging management.

Types of LiteOn EV Chargers

LiteOn offers a comprehensive lineup of AC Level 2 and DC fast chargers:

• AC Models:

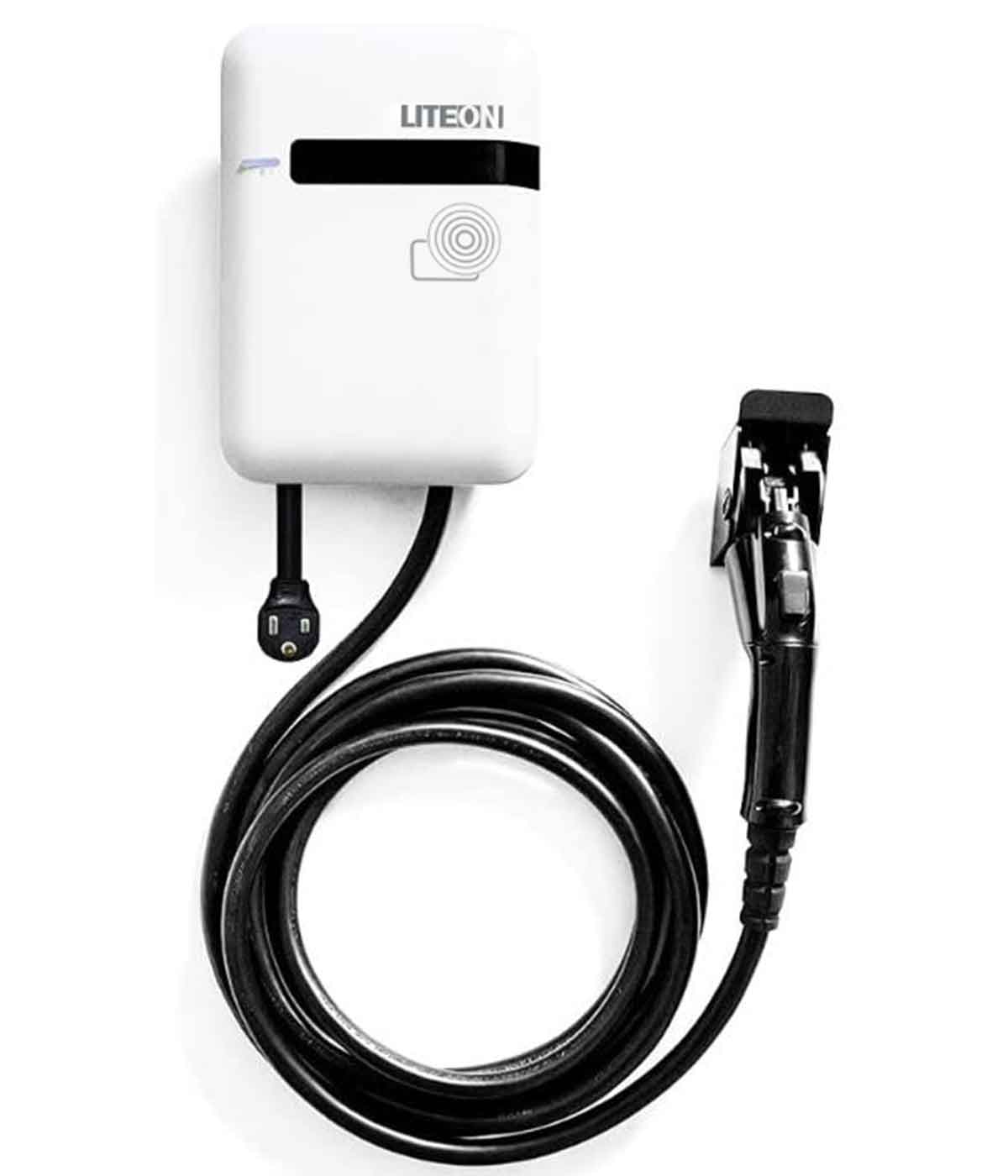

  • IC 32A / 40A / 48A / 80A wall‑mount or pedestal chargers delivering 7.7–19.2 kW. Ideal for workplaces, fleets, and residential parking. Features include SAE J1772 connectors, rugged IP55/IK10 housing, LED/LCD display, RFID, ISO 15118 readiness, and connectivity via Ethernet, Wi‑Fi, and LTE.
• DC Model:
  • DC 30 kW fast charger with CCS1 and CHAdeMO connectors, 380–480 Vac 3‑phase input, 5″ display, RFID/POS, IP55/IK10, ISO 15118, and full OCPP 1.6J/2.0.1 support.

How to Connect LiteOn to the Internet

LiteOn chargers support Ethernet, Wi‑Fi, and 4G LTE/CAT‑1 connectivity for remote access. Steps include:

1. Access the charger’s local portal via IP or LCD interface.
2. In Network Settings, choose your connection—Ethernet for stability, Wi‑Fi indoors, LTE outdoors.
3. Enter credentials and verify network status.
4. Ensure the charger registers to a backend via its OCPP endpoint.

Integrating LiteOn with Remote Monitoring Software

All LiteOn models ship with OCPP 1.6J (and in some cases 2.0.1). To integrate:

• Configure OCPP server URL and Charge Point ID using serial number.
• Upon reboot, the charger connects and registers on Ampcontrol’s platform.
• You’ll gain access to:
  • Real‑time status, session details, error alerts
  • Remote start/stop, resets, firmware updates
  • Smart charging schedules, load management
  • Charging history and analytics

Ampcontrol’s monitoring platform transforms LiteOn chargers into intelligent networked assets ideal for scalable deployment.

🧪 What We Test for Compatibility

Ampcontrol validates each LiteOn model through:

• OCPP Functionality: heartbeats, notifications, transaction control
• Smart Charging Response: scheduled power adjustments, load responsiveness
• Network Reliability: offline recovery, firmware update handling
• Metering Accuracy: energy Readings, UI display reliability
• Security Compliance: TLS handling and authentication
• OEM EV Compatibility: tested with passenger and commercial EVs
